Extron DPM-HDF/0.5 4K PLUS (26-713-01)

DisplayPort Male to HDMI 15cm Female Active Adapter

Supports up to 4K/60Hz 4:4:4; Max Bandwidth 18Gbps

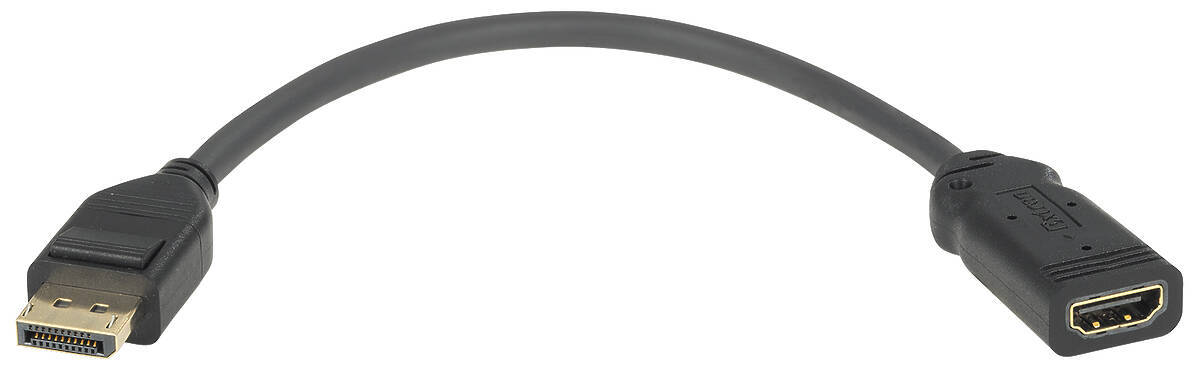

Extron DPM-HDF/0.5 4K PLUS 26-713-01 product image

£106 (£127.20 inc. VAT)
Availability: Please Call

The Extron DPM-HDF/0.5 4K PLUS is an active DisplayPort to HDMI adapter for signals up to 4K/60 @ 4:4:4. Active circuitry converts DisplayPort packetised signals to TMDS for connection to HDMI devices. The 6" (15 cm) adapter cable features DisplayPort male and HDMI female connectors with gold-plated contacts and is powered by the connected DisplayPort source device. EDID, HDCP, and audio information are passed through between source and display. The DPM-HDF/0.5 4K PLUS is ideal for connecting DisplayPort-equipped sources to HDMI displays or other sink devices.

Note

This is a powered adapter and must be used directly at the DisplayPort source. It is not intended to be used at a DisplayPort video display. Do not use additional cables or adapters between the source output and the male end of the DisplayPort adapter. LockIt Cable Adapter Tether not included.

Extron DPM-HDF/0.5 4K PLUS Key Features

Provides connectivity between DisplayPort sources and HDMI displays and peripherals
Provides active conversion of DisplayPort signals to HDMI
Supports resolutions up to 4K/60 @ 4:4:4 with data rates up to 18 Gbps
Complies with VESA Interoperability Guidelines
HDCP compliant
Passes EDID information from HDMI display to the source
Supports 8-channel LPCM and HBR audio
Compatible with DisplayPort and Dual-Mode DisplayPort sources
Latching DisplayPort connector
Gold-plated contacts
Molded loop for use with optional LockIt® Cable Adapter Tether
LockIt Cable Adapter Tether available for secure attachment between adapter and cable, part #101‑021‑10
6" (15 cm) adapter cable for ease of installation
