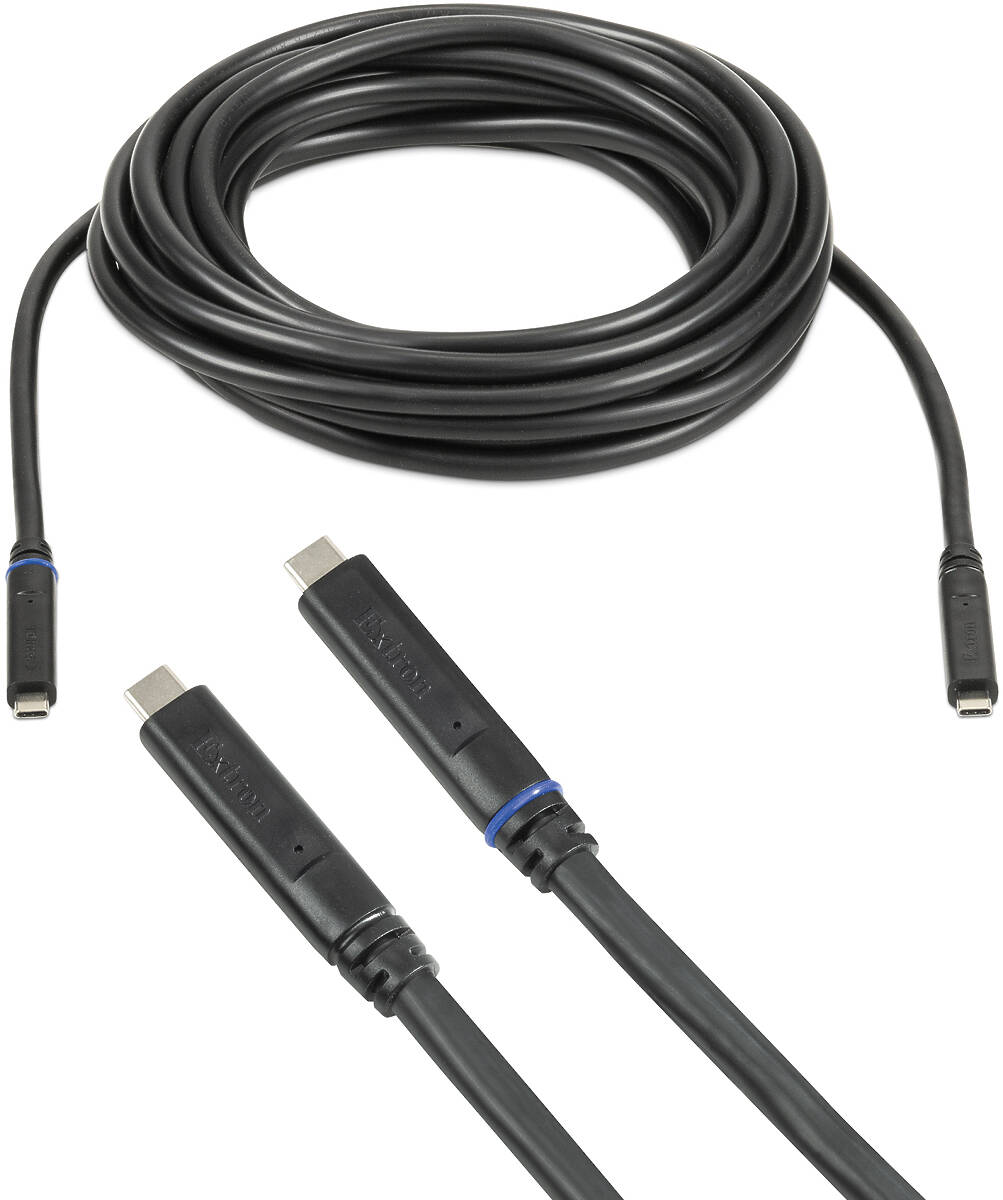

Extron USBC ProMax/15

The Extron USBC ProMax Series of active, hybrid optical-copper USB‑C® cables simultaneously transmit video, audio, data, and power up to 9.1 metres. This USB 20Gbps cable features dynamic DP Alt Mode lane switching for optimal 2-lane or 4-lane video and USB operation. It supports DisplayPort Alt Mode 8K video with USB 2 data rates, and 4K video with USB data rates up to 10 Gbps. Additionally, 100 watt USB Power Delivery enables powering of laptops and mobile devices. Descriptive text and a blue-coloured ring on the host connector allow for easy identification of cable directionality, reducing the likelihood of improper connection.

• [MARKDOWN]
• - Supports video, audio, data, and power simultaneously:
• - USB data and power are bidirectional
• - DisplayPort audio and video are unidirectional
• - Supports USB data rates up to 20 Gbps
• - DisplayPort Alt Mode supports up to 8K
• - Supports automatic 2-lane or 4-lane video configuration for DP Alt Mode with USB data
• - 8K video support with USB High-Speed data rates:
• - 8K video over four high-speed lanes for a total of 32.4 Gbps (8.1 Gbps per lane)
• - USB High-Speed over the USB 2 lane
• - 4K video support with USB 10Gbps data rates:
• - 4K video over two high-speed lanes for a total of 16.2 Gbps, (8.1 Gbps per lane)
• - USB 10Gbps over two high-speed lanes
• - USB High-Speed over the USB 2 lane
• - USB Power Delivery up to 100 watts — Supports various power profiles up to 20 volts at 5 amps
• - Bidirectional USB power flow — When connected to USB devices that support USB PD, power flows both ways, enabling host or peripheral to provide power to the far-end device.
• - Multi-Stream Transport - The cable supports MST, allows multiple monitors to be operated simultaneously from a single USB‑C source output.
• - Integrated eMarker communicates cable capabilities to ensure safe and efficient data transfer and power delivery
• - Supports EDID and HDCP transmission
• - Colour-coded and labeled ends — A blue ring around the neck of the host connector and molded text provide visual identification for cable orientation.
• - Gold-plated contacts — Contacts do not tarnish, maintaining a long-lasting, reliable electrical connection.
• - Optional LockIt® Plus cable lacing bracket works with USB-C and HDMI cables
• - No external power is needed — Built‑in active circuitry is powered by either end, eliminating the cost of an external power supply.
