Extron USBC Pro 8K/30

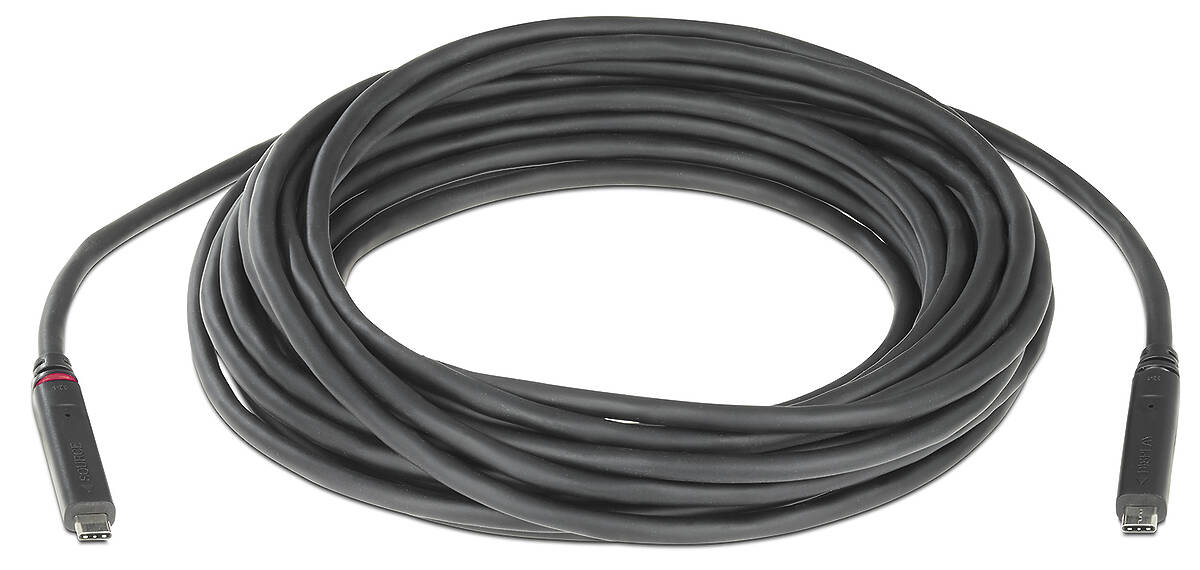

The Extron USBC Pro 8K Series of active, hybrid optical-copper USB‑C® cables simultaneously transmit DisplayPort audio and video, USB High-Speed data rates, and power over distances up to 30 feet (9.1 meters). These feature-rich cables support 8K/30 video and audio on four DisplayPort lanes. The USBC Pro 8K cables support bidirectional USB Power Delivery of up to 60 watts. The ultra-flexible, 0.26" (6.5 mm) thin diameter and narrow bend radius cable construction allow for installation in tight spaces. These active cables are unidirectional and can draw power from either connected USB device. The USBC Pro 8K Series cables are ideal for USB‑C-enabled devices that support 8K/30 video.

The USBC Pro 8K Series offers the benefits of fibre optics with the simplicity of traditional copper cables. Providing the best combination of price and performance, this cabling solution is ideal for sending DisplayPort video, embedded audio, USB data, and power signals over long cable runs while maintaining full signal integrity. It supports reliable operation in mission-critical applications.

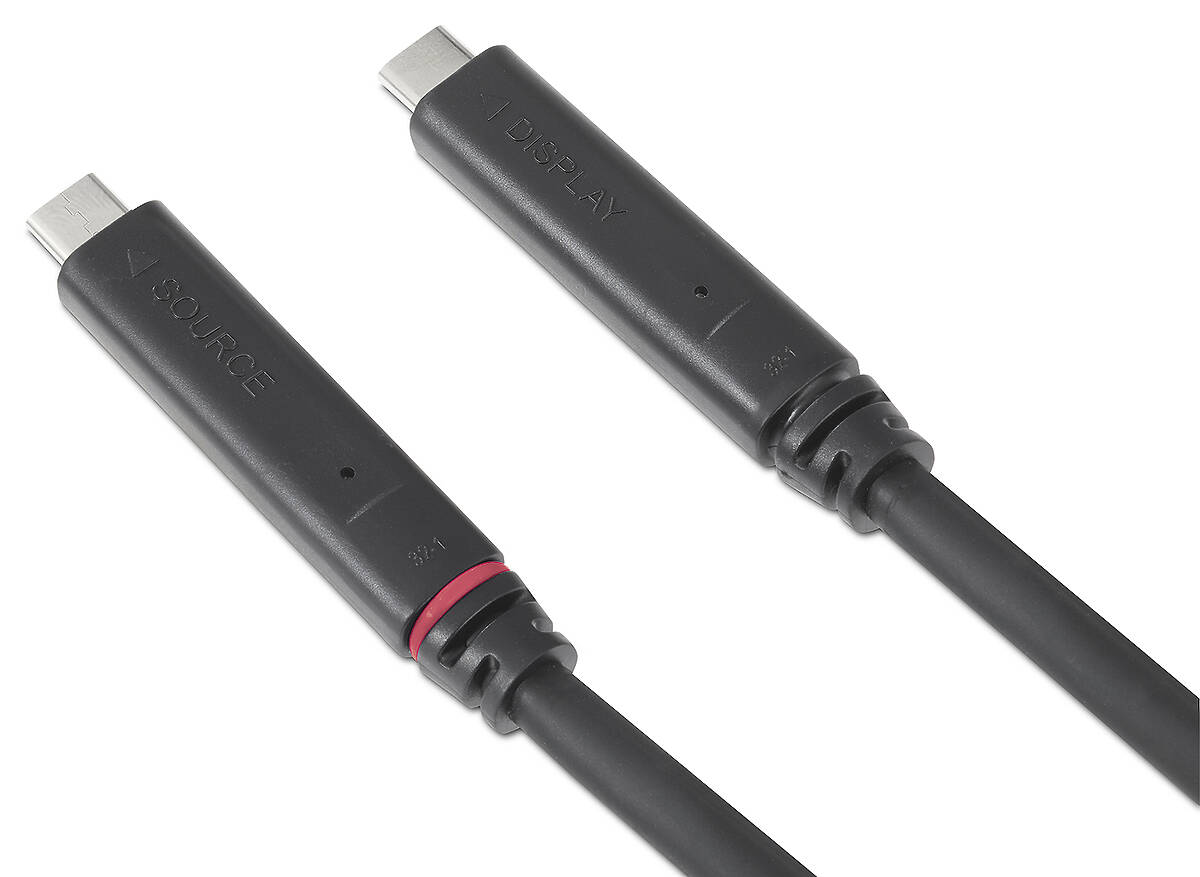

For easy identification and cable orientation, a red-coloured ring encircles the host connector neck and connector ends are moulded with descriptive text to indicate source and display directionality.

• Extends 8K/30 DisplayPort video and embedded audio signals - Compatible with DisplayPort Alt Mode-capable USB‑C host devices, the unidirectional USBC Pro 8K Series cables transmit DisplayPort video and embedded audio signals from the host to the connected display device over four DisplayPort lanes.
• New Multi-Stream Transport - MST support - The cable supports MST, which allows multiple monitors to be operated simultaneously from a single USB‑C source output.
• Supports USB High-Speed data rates
• USB Power Delivery up to 60 watts - Supports various voltage profiles up to 20 volts at 3 amps, thus able to charge a range of devices.
• Supports pass-through of EDID and HDCP‑encrypted signals
• Ultra-flexible, ultra-thin 0.26" (6.5 mm) diameter cable - Narrow bend radius facilitates easier installation and reduces possibility of cable damage.
• No external power is needed - Built‑in active circuitry is powered by either end, eliminating the cost of an external power supply.
• Bidirectional USB power flow - When connected to USB devices that support USB PD, power flows both ways, enabling either host or peripheral to provide power to the far-end device.
• Highly resistant to EMI/RFI Interference - The USBC Pro 8K Series can be used in high-interference environments, such as data centres and manufacturing facilities.
• Gold-plated contacts - Contacts do not tarnish, maintaining a long-lasting, reliable electrical connection.
• Colour-coded and labelled ends - A red ring around the neck of the host connector and moulded text provide visual identification for cable orientation.
• Available in lengths from 12 feet to 30 feet (3.6 meters to 9.1 meters)
