NEC UM301X Projector

No Longer Available

Click for Current NEC range

NEC UM301X Key Features

  • LCD Display Technology
  • 3,000 Lumens
  • XGA 1024*768 Native Resolution
  • 3,800 hour lamp life (typical)
  • 4,000:1 Contrast Ratio
  • 5.5kg (12.1lb.)
  • Ultra Short Throw (0.36:1)
  • PC Free Presentations
  • Direct Power Off
  • Mouse Emulation Remote

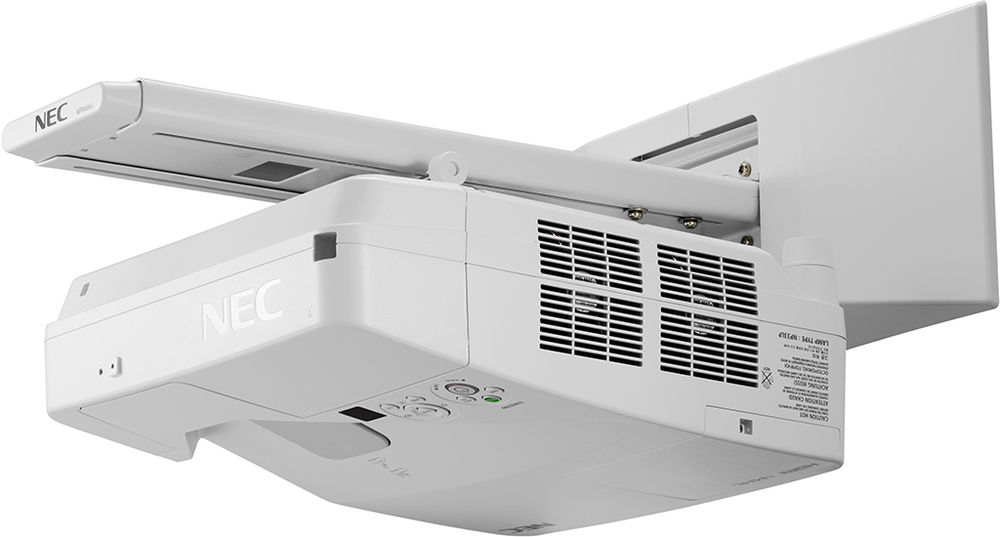

  • Includes Wall Bracket
  • Micro Lens Array
  • Logo capture and display
  • PIN Code Security
  • Quick Power On
  • Quick Power Off
  • DICOM Simulation Mode
  • Monitor Out
  • Network Control

NEC UM301X Downloads


NEC UM301X Specifications

Categories PC Free
Ultra Short Throw
Manufacturer NEC (Click for rest of range)

NEC UM301X Optical Features

System 3 * 0.59" LCD
Resolution XGA (1024*768)
Aspect Ratio 4:3
Lumens 3,000
ECO Mode Lumens 1,800
Contrast 4,000:1
Lamp 235W/140W Eco
Lamp Life 3,800hrs. (6,000hrs. ECO mode)
Interchangeable No
Zoom Range Fixed
Throw Ratio 0.36 - 0.36:1
Image Size 58"-110" diagonal
Throw Distance 0.45-0.85m
Throw distance for 100" image 0.73 - 0.73m
Lens Shift No
KeystoneCorrection ±10° (Vertical)

NEC UM301X Compatibility

Computer Resolutions VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WUXGA
Video Resolutions PAL, SECAM, NTSC, 1080i, 720p
Horizontal Freq. 15-100kHz
Vertical Freq. 24-120Hz

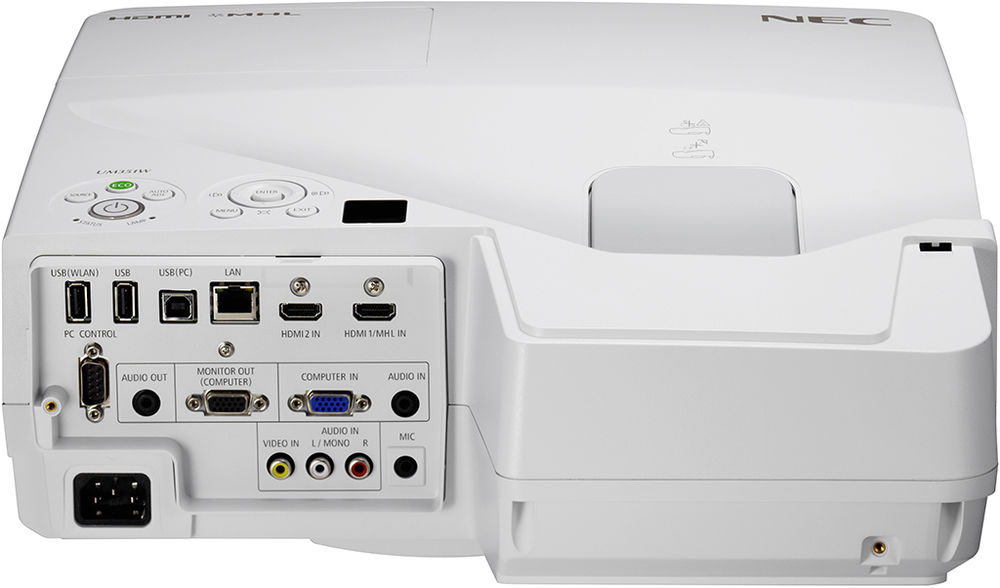

NEC UM301X Terminals

HDMI 2
RGBHV (15-pin HD) 1
Composite 1
Monitor Out Yes
Audio In 2
Audio Out 1
USB 3
RS-232 1
Network Ready Yes

NEC UM301X General

Speakers 20w mono
Remote Control NEC UM301X + Mouse Emulation
Noise 35db (27db ECO mode)
Dimensions 378*112*428mm (W*H*D)
Weight 5.50kg
Power Supply 100-240V AC; 50-60Hz
Power Consumption 344Watts
Manufacturers Warranty 3 year pan European loan support
Light Source Warranty 6 months/1000 hours (whichever first)

NEC UM301X Package Contents

Accessories IR Remote Control (RD-448E); Mini D-SUB Signal Cable; Power Cord (1.8 m); Quick Setup Guide; Security Sticker; Users Manual on CD-ROM; Wall-mount kit NP04WK

Ivojo Multimedia are approved NEC dealers and supply only UK products with full UK warranties.
