Vogels C1544S

Monitor/TV Ceiling Mount Kit
Up to 65"/ Max 80kg; VESA 100×100 to 400×400; 140cm ceiling to screen centre; Silver finish

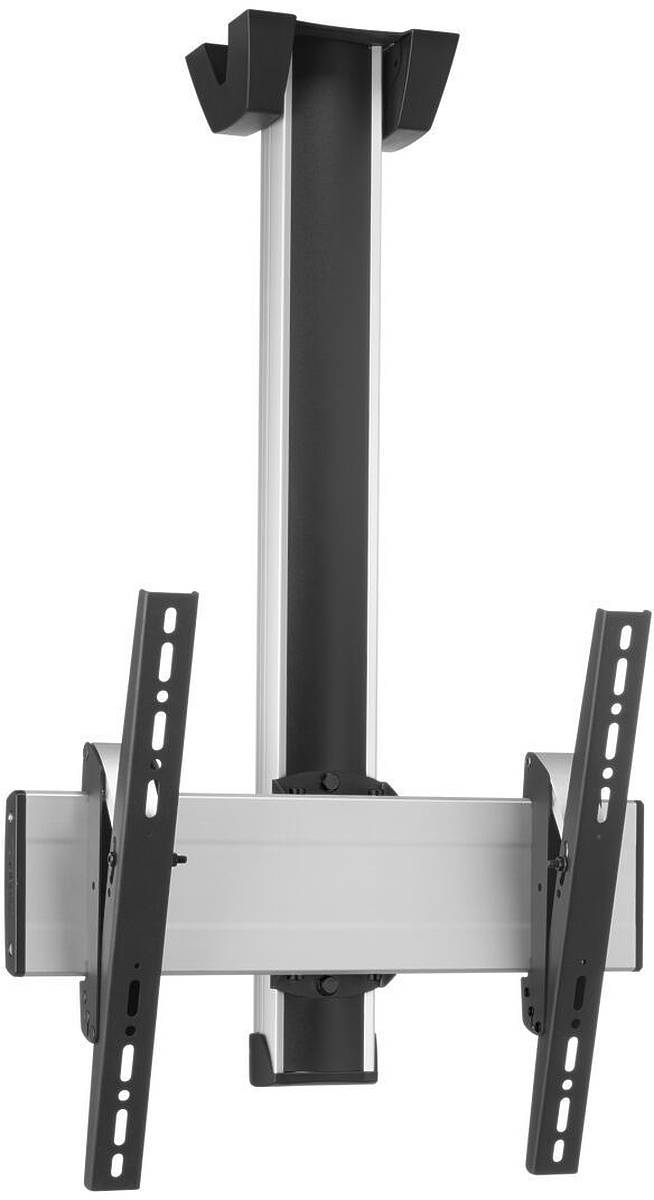

Vogels C1544S Monitor/TV Ceiling Mount Kit product image

Vogels C1544S (7950024)

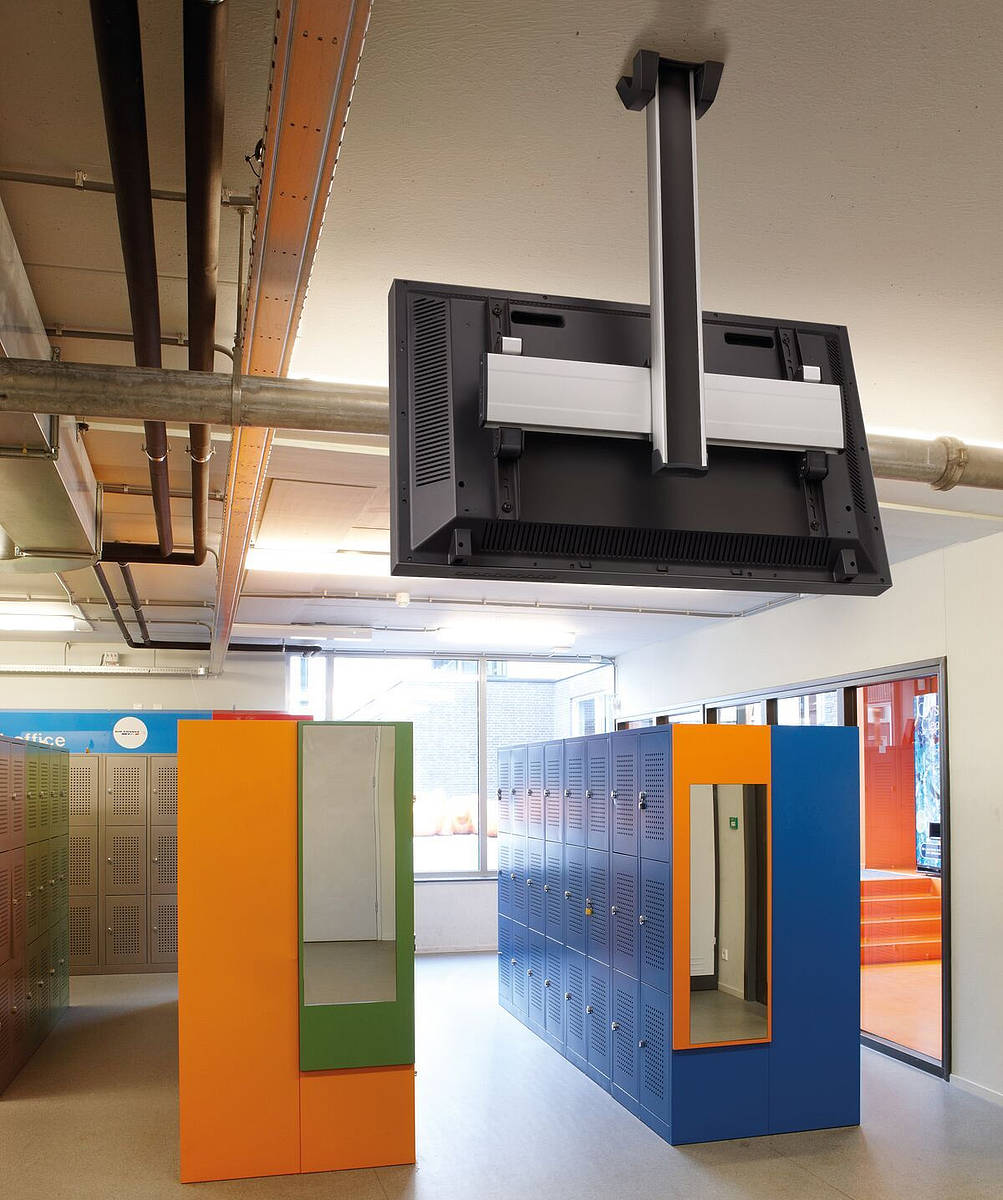

The Vogels C 1544 ceiling mount is specially designed to securely suspend a TV from the ceiling. For hanging a large TV over a bed or in a corner. This mount has a stylish design that looks sleek and compact in any décor.

The C 1544 ceiling mount is made for TVs with a 400 x 400 VESA and maximum of 80 kg/176 lbs. It can tilt up to 20 degrees. A cable inlay systems makes sure that all cables are neatly hidden from sight. The mount is sturdy and solid, because safety is paramount at Vogel's.

Designed to fit VESA measurements 100×100, 200×100, 200×200, 300×200, 400×200, 300×300, 400×300 and 400×400.

Max Load: 80.00kg.
Order Code: 7950024
See entire Vogels Monitor Ceiling Mounts (80kg) Range

Ideal For

Hospitality
Museums and Art Galleries
Places of Worship
Public Display
Retail
Scheduling Display

£265 (£318.00 inc. VAT)
Availability: In Stock

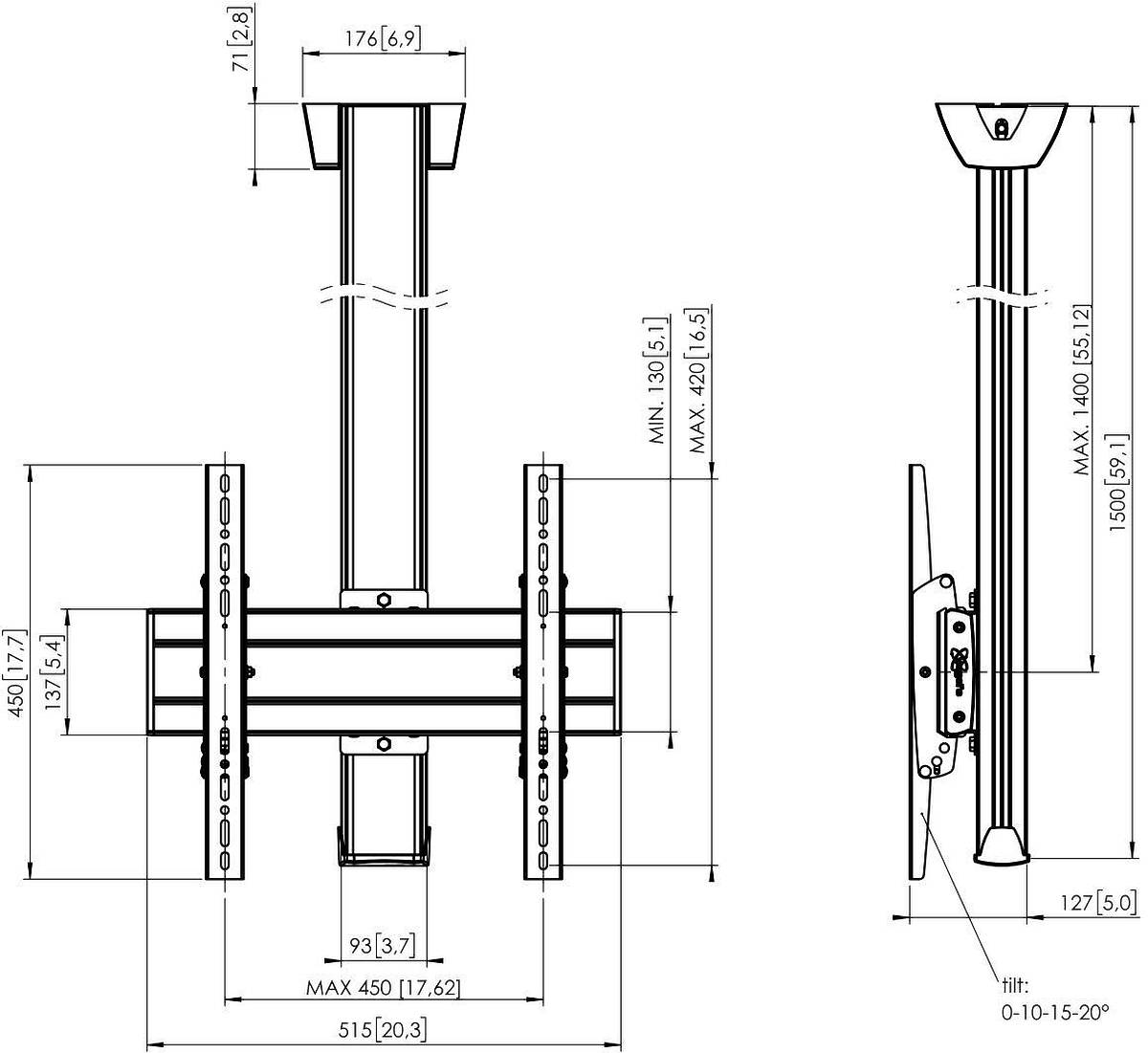

Vogels C1544S Specifications

Screen Size	Up To 65 inch
VESA Compatibility	100x100, 200x100, 200x200, 300x200, 300x300, 400x200, 400x300, 400x400
Pole length	1500 mm
Ceiling to Display Centre	1400mm
Colour	Silver
Max. weight load	80kg
Tilt	Tilt up to 20°

Max. screen size	65 inch
Autolock	Yes
Ceiling types	Flat ceiling
Horizontal Hole Pattern	100-450mm
Vertical Hole Pattern	100-420mm
Guarantee	5 years

C1544S Component Parts

Product Code	Description
1 × Vogels PFB3405S	Connect-it 515mm Interface bar finished in Silver
1 × Vogels PFS3304	Vertical mounting arms for LCD/LED monitors and commercial TV's (Max. 80kg; 0/5/10/15/20° Tilt)
1 × Vogels PUC1065	Connect-it Rotating Ceiling Plate
1 × Vogels PUC2515S	150㎝ Connect-it Ceiling column finished in silver
