Vivitek DU9900Z Projector &
Vivitek D98-1520 Projector Lens

Vivitek DU9900Z

  • 22000 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 10000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 52.3kg (115.3lb.)
  • 5 year Return to base warranty
  • Vivitek DU9900Z
Vivitek DU9900Z & Vivitek D98-1520
£24100 (£28920.00 inc. VAT)
Availability: Please Call

Vivitek D98-1520
Suitable For

Vivitek D98-1520 Lens Only
£1517 (£1820.40 inc. VAT)
Availability: Please Call

Select a Screen

Min. Throw Max Throw Foot Lamberts
3.00m 4.00m 817.55

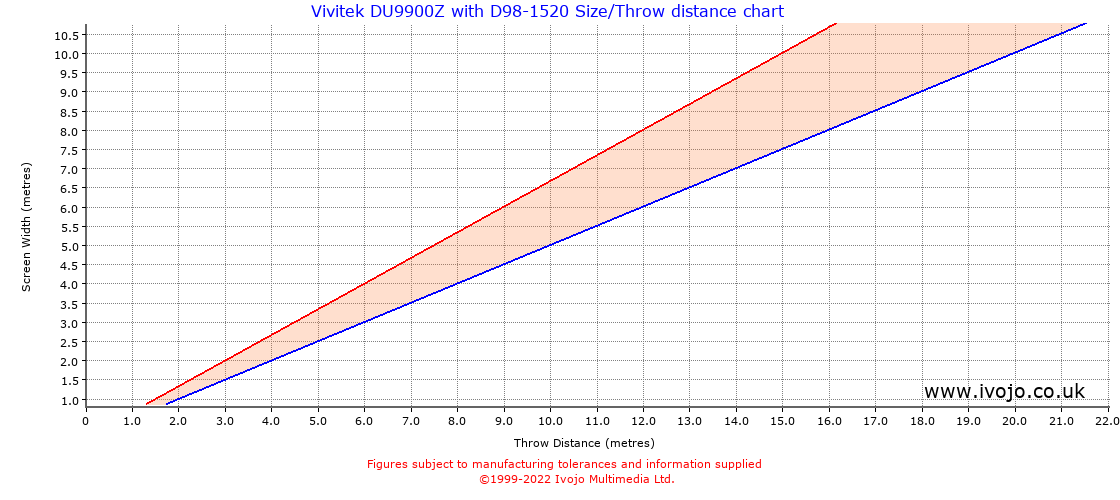

Throw Chard for Vivitek DU9900Z fitted with Vivitek D98-1520

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.75 1.00 0.14 sq.m. 14534.16
1.00 0.56 1.15 1.50 2.00 0.56 sq.m. 3633.54
1.50 0.84 1.72 2.25 3.00 1.27 sq.m. 1614.91
2.00 1.12 2.29 3.00 4.00 2.25 sq.m. 908.39
2.50 1.41 2.87 3.75 5.00 3.52 sq.m. 581.37
3.00 1.69 3.44 4.50 6.00 5.06 sq.m. 403.73
4.00 2.25 4.59 6.00 8.00 9.00 sq.m. 227.10
5.00 2.81 5.74 7.50 10.00 14.06 sq.m. 145.34

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.50 0.67
2 1.00 1.33
3 1.50 2.00
4 2.00 2.67
5 2.50 3.33
6 3.00 4.00
7 3.50 4.67
8 4.00 5.33

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
