Optoma ZU1700 Projector &
Optoma BX-CTA19 Projector Lens

Optoma ZU1700

  • 14500 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 2000000:1 Contrast Ratio
  • 30000 hour lamp life (typical)
  • Lens Shift function
  • 50kg (110.2lb.)
  • 3 year Return To Base warranty
  • Optoma ZU1700
Optoma ZU1700 & Optoma BX-CTA19
£18003 (£21603.60 inc. VAT)
Availability: Please Call
Optoma BX-CTA19 Lens Only
£2564 (£3076.80 inc. VAT)
Availability: Please Call

Select a Screen

Min. Throw Max Throw Foot Lamberts
2.04m 2.72m 538.84

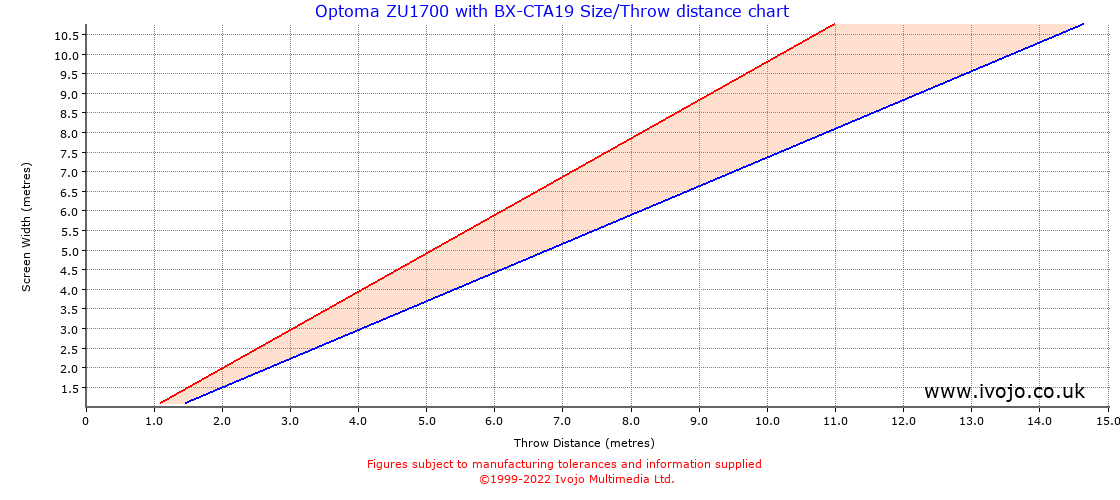

Throw Chard for Optoma ZU1700 fitted with Optoma BX-CTA19

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.51 0.68 0.14 sq.m. 9579.34
1.00 0.56 1.15 1.02 1.36 0.56 sq.m. 2394.83
1.50 0.84 1.72 1.53 2.04 1.27 sq.m. 1064.37
2.00 1.12 2.29 2.04 2.72 2.25 sq.m. 598.71
2.50 1.41 2.87 2.55 3.40 3.52 sq.m. 383.17
3.00 1.69 3.44 3.06 4.08 5.06 sq.m. 266.09
4.00 2.25 4.59 4.08 5.44 9.00 sq.m. 149.68
5.00 2.81 5.74 5.10 6.80 14.06 sq.m. 95.79

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.74 0.98
2 1.47 1.96
3 2.21 2.94
4 2.94 3.92
5 3.68 4.90
6 4.41 5.88
7 5.15 6.86
8 5.88 7.84

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
