> > > Hitachi CP-WX5506

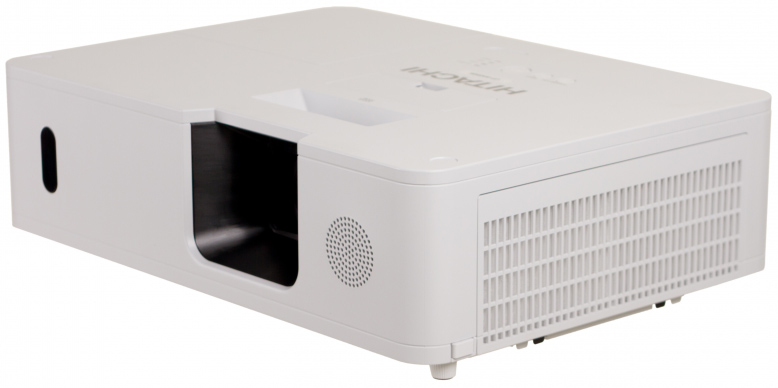

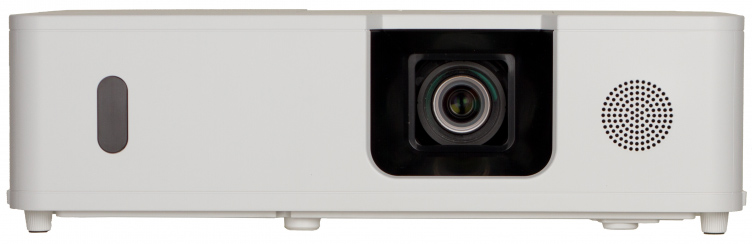

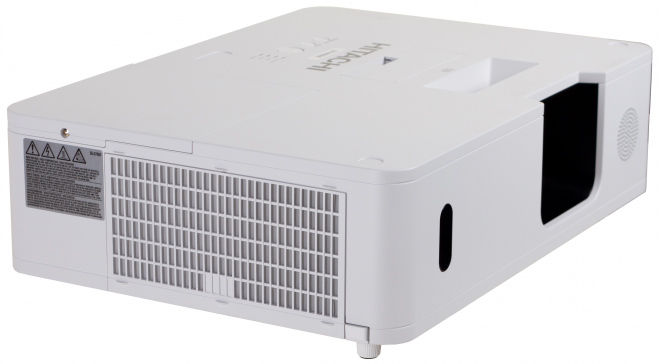

Hitachi CP-WX5506 Projector

£1179 (£1414.80 inc. VAT)
Availability: 3-5 days

Hitachi CP-WX5506 Key Features

  • LCD Display Technology
  • 5400 Lumens Colour Light Output
  • Wide XGA Resolution
  • 4000 hour lamp life (typical)
  • 10000:1 Contrast Ratio
  • 3 year de/re-install warranty
  • 6.8kg (15.0lb.)
  • Wide zoom range for flexible placement
  • DICOM Simulation Mode
  • Digital (HDMI/DVI/DisplayPort) Input
  • Edge Blending
  • HDBaseT
  • Horizontal & Vertical Keystone Correction
  • Lens Shift
  • MHL
  • Monitor Out
  • Native Widescreen
  • Network Control
  • Picture-and-Picture
  • Picture-In-Picture
  • PIN Code Security
  • Stacking Function


Hitachi CP-WX5506 Throw Chart (Click for details)

Hitachi CP-WX5506 throw distance chart

Hitachi CP-WX5506 Specifications

CategoriesHDBaseT
Lens Shift
Short Throw Zoom
ManufacturerHitachi (Click for rest of range)

Hitachi CP-WX5506 Optical Features

System3 * 0.63" LCD
ResolutionWXGA (1280*800)
Aspect Ratio16:10
CLO5400 Lumens Colour Light Output
Eco Mode CLO3618 Lumens Colour Light Output
ANSI Lumens5400
ECO Mode Lumens3618
Contrast10000:1
Lamp300W
Lamp Life4000hrs. (6000hrs. ECO mode)
Lens1.6x manual zoom and focus
InterchageableNo
Zoom Range1.6x
Throw Ratio1.3 - 2.1:1
Image Size30"-300" diagonal
Throw Distance0.80-13.60m
Throw distance for 100" image2.80 - 4.52m
Lens ShiftPowered Vertical 10:1~1:1
Keystone Correction+/-30° (Vertical)
+/-30° (Horizontal)

Hitachi CP-WX5506 Compatibility

Computer ResolutionsVGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WUXGA
VideoPAL, SECAM, NTSC
HDTV1080p, 1080i, 720p

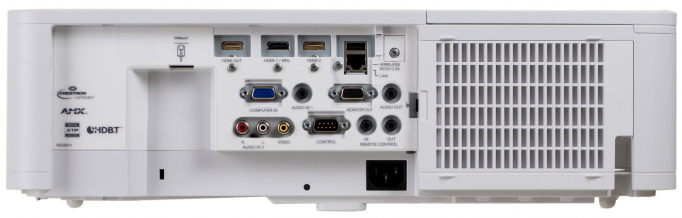

Hitachi CP-WX5506 Terminals

HDMI2
RGBHV (15-pin HD)1
Composite1
Monitor OutYes
USB1
RS-2321
HDBaseT1
Network ReadyYes

Hitachi CP-WX5506 General

Speakers16w mono
Remote ControlHitachi CP-WX5506 only
Noise38db (29db ECO mode)
Dimensions460*138*334mm (W*H*D)
Weight6.80kg
Power Supply100-240V AC; 50-60Hz
Manufacturers Warranty3 year de/re-install (6 moths/1000 hours (whichever first) on lamp)

Hitachi CP-WX5506 Package Contents

AccessoriesRemote Control with Batteries
USB Wireless Adapter (USB–WL–5G)
Power Cord
Computer Cable
Lens Cover
Adapter Cover
Terminal Cover
Application CD
User's Manual (Book
CD–ROM)
Security Label
Hook Metal
Screw
Cable Tie
HDMI Cable Holder

Ivojo Multimedia are approved Hitachi dealers and supply only UK products with full UK warranties.



Hitachi CP-WX5506 Accessories

DescriptionPriceInc. VAT
Seddon Flight Case 10 Hard case for projectors weighing 5-10kg £133 £159.60
Chief SL151I Projector Lift (Projector dimensions up to 464*213*464mm and 15.9kg) £1864 £2236.80



Hitachi CP-WX5506 Alternatives

Product Type ANSI Lumens Weight Price Inc. VAT
NEC PA572W LCD 5700 7.8 £2125 £2550.00
Epson EB-5520W LCD 5500 6.6 £1467 £1760.40
Hitachi CP-WX5500 LCD 5200 6.9 £999 £1198.80
Sony VPL-CW276 LCD 5100 5.7 £1450 £1740.00
