NEC MultiSync UN552 LED Video Wall Monitor Monitor

NEC MultiSync UN552 55 inch Large Format Display product image. Click to enlarge.

NEC MultiSync UN552 55 inch Large Format Display product image

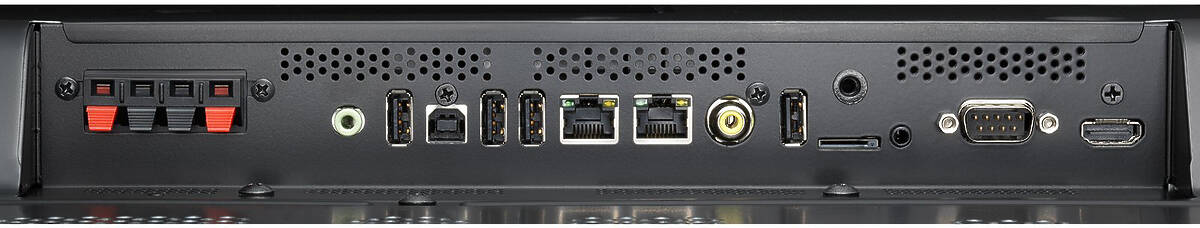

NEC MultiSync UN552 55 inch Large Format Display connectivity (terminals) product image

£2676 (£3211.20 inc. VAT)
Availability: In stock

NEC MultiSync UN552 Suggested Applications

Public Display

Exhibitions

Museums and Art Galleries

Key Features

55" Diagonal S-IPS with Direct LED backlights Panel
Easy installation - effortlessly set up you wall display with Auto TileMatrix and out-of-the-box calibrations. Save time by plugging in ready-to-use image presets for predefined application scenarios.
Enhanced imaging performance - advanced settings of all relevant visual parameters allow full control of brightness, colour, gamma and uniformity via the SpectraView Engine for precise, natural images.
Secure Reliability and Longevity of Video Walls - unique NEC heat management system enables the user to monitor and control the heat inside the display.
Smart media integration - seamlessly integrate the media source of your choice into the video wall display. Use the wide range of NECs OPS Slot-in PCs, and Raspberry Pi compute modules, for content feed and computing.
Lifelike and consistent colour - expect colour reproduction that feels true to life with IPS panel technology, the top choice when it comes to colour consistency. The S-IPS panel ensures that perfect visibility is maintained in landscape and portrait mode and at extreme viewing angles as viewers pass by.
VESA 400×400; M6 mounting points
Designed for 24/7 use - Warranty covers use all day, every day
USB Media Player - Play JPeG images, MP3 audio or MPG video from a USB memory stick
Display Daisy Chaining - Connect monitor output to next monitor input to duplicate display
DICOM Support - For accurate medical imaging
Landscape/Portrait Mode - The MultiSync UN552 can be installed in either standard landscape or portrait orientation
OPS Slot - Allows expansion modules such as PC boards, HD-SDI interfaces to be added
LAN Control/Monitoring - The monitor can be controlled through your local area network
Integrated Media Player - Content can be transfered to the display via USB memory stick or network
SD Card Slot - For media transfer

Video Walls you can rely on

The MultiSync UN552 sets the standard for video wall technology. Featuring a minimal 3.5 mm bezel these display modules create impressive high resolution video walls with barely visible image gaps. With perfect picture quality and high product reliability, these displays are designed for the rigors of 24/7 operation. At a high brightness level of 700 cd/m your message will be well received with effortless readability even in the brightest ambient light conditions. An advanced set of intelligent features make the displays easy to install and operate and support significantly reduced maintenance requirements. The 55 display is ideally suited to create huge screen surfaces for fixed installations and for mid and longer viewing distances.

NEC's vast experience in the video wall market is evident in the design with features that reduce costs, ease installation and enhance the visual impact of content in control rooms, broadcast studios, transport installations and the rental market.

NEC MultiSync UN552 Downloads

Instruction Manual

Mounting Options & Accessories

Vogels FCVW2255

Unicol MBC455

Vogels PFW6880

Unicol MBC355

Vogels PFW6870

Vogels PFW6875

Unicol MV455

Vogels FVW3355

Unicol MV255

NEC MultiSync UN552 Summary
Manufacturers Part No.	60004884
Model	NEC MultiSync UN552
EAN / UPC	5028695115460
Display Type	S-IPS with Direct LED backlights
Features	Designed for 24/7 use USB Media Player Display Daisy Chaining DICOM Support Landscape/Portrait Mode OPS Slot LAN Control/Monitoring Integrated Media Player SD Card Slot
Diagonal	55"
Viewable Area	12.1 * 6.8cm
Native Resolution	1920×1080
Brightness	700cd/m²
Contrast	1,700:1
Pixel Pitch	0.630mm
Colours	16.77
Horizontal Frequency	60KHz
Vertical Frequency	23 - 86Hz
Connectivity
VGA / 15pin d-sub	1
DVI	1
HDMI	2
DisplayPort	2
Audio in	2
USB	5
RS-232	1
General Specifications
Speakers	Optional Speakers (15 W + 15 W)
Warranty	3 years warranty incl. backlight; optional 4. + 5. year warranty extension 1
Monitor Dimensions	121.3 × 68.4 × 10.4cm (w×h×d)
Weight	25.5kg.
VESA	400×400; M6
Power Supply	TBC
Consumption	150380w
Connectivity Details
Digital Video Inputs	1 x DVI-D (with HDCP); 1 x OPS Slot; 2 x DisplayPort (with HDCP); 2 x HDMI (with HDCP)
Analogue Video Inputs	1 x VGA; Composite (RCA)
Digital Audio Inputs	2 x DisplayPort; 2 x HDMI
Analogue Audio Inputs	2 x 3,5 mm jack
Control Inputs	1 x Remote Control (3.5 mm jack); 1 x RS232; 2 x LAN 100Mbit
Control Output	LAN 100Mbit
Data Inputs	1 x microSD (MediaPlayer); 1 x USB 1.0 (Downstream); 1 x USB 1.0 (MediaPlayer); 1 x USB 2.0 (Upstream); 2 x USB 1.0 (Compute Module, 1 x 5V/2A powered)
Digital Video Output	1 x DisplayPort (loop through: DisplayPort, OPS slot-in PC)
	1 x HDMI (loop through: HDMI, OPS slot-in PC, Mediaplayer)
Analogue Audio Output	1 x 3,5 mm jack
Computer Module Slot	Raspberry Pi Compute Module 1 and 3
Media Player / Embedded Computer
OPS Slot	Intel® Atom, Celeron and Core i3, i5, i7 Slot-in PCs
Image Formats	JPG (baseline, progressive, RGB, CMYK); max. resolution 5000 x 5000; PNG (interlace, alpha channel); max. resolution 4000 x 4000
Video Formats	MP4 / MOV / FLV (video H.264, audio MP3, AAC); max. resolution 1080p at 30 Hz, 1080i at 60 Hz; MPG (video mpeg1/2, audio mpeg audio layer2/3, AAC-LC); MP @ ML, MP @ HL; WMV (video H.264, wmv advanced L3, wmv simple / main, audio mp3 wmv std); max. resolution 1080p at 30 Hz, 1080i at 60 Hz
Audio Formats	MP3 (MP3); max. bit-rate 320 kBit/s; WAV (LPCM); max. 48 kHz sampling
Other Features
Special Features	Auto ID assignment; Auto tiling function; Automatic Alarm E-Mails; DICOM Simulation; Frame Comp; HTTP Server; Image flip; Intelligent Wireless Data (based on NFC); NaViSet Administrator 2; PJLink Support; TileMatrix; USB Media Player; User input priority definition; User readable log function
Temperature Sensor	Integrated, 3 sensors, triggered actions programmable
Bezel Width	1.2 bottom/right; 2.3 top/left; 3.5mm
Orientation	Landscape; Portrait
Operating Temperature	+0 to +40°c
Operating Humidity	20 to 80%
Storage Temperature	-20 to 60°c
Storage Humidity	10 to 90%
Power Saving Mode	< 0.5; < 2 (Networked Standby) Watts
Energy Efficiency	Carbon savings meter; Energy consumption: 141 kWh/1000 h; Energy efficiency class: G; Human Sensor; LED backlight
Ecological Standards	EnergyStar 8.0
Safety & Ergonomics	BSMI; CE; EAC; FCC; PSB; RCM; REACH; RoHS; SASO; TÜV GS; TÜV S; UL/C-UL; VCCI
Operating Hours	24/7
Included Accessories
Accessories	Display; DisplayPort Cable; HDMI Cable; LAN cable (RJ45); Power Cable
