WyreStorm EX-35-H2-ARC
1:1 4K HDR HDMI / RS-232 / PoH / IR over HDBaseT Extender Kit with ARC
Max. 35m @ 4K 60Hz, 70m at HD 60Hz 16-bit
Availability: Please Call
WyreStorm EX-35-H2-ARC
Part of the latest generation of WyreStorm 4K extenders for the latest generation of 4K HDR content, the WyreStorm EX-35-ARC features dynamic compression for delivery of 4K/60 4:4:4 and HDR content up to 17.8Gbps over standard HDBaseT, both visually losslessly and without latency.
With support for HDR-10 and HLG up to 60Hz, and Dolby Vision™ at 30Hz, the EX-35-H2-ARC offers True Audio Return Channel (ARC), enabling an ARC signal from a Smart TV HDMI input to be passed to an AVR HDMI output.
HDMI 2.0 MAXED-OUT
Knowing the speed at which technology moves, at WyreStorm we’re always looking ahead. That’s why we’ve included our VLC chipset (Visually Lossless Compression) in this extender meaning not only ARC is supported but also the next shift in content technology: 60Hz HDR and 4:4:4 60Hz. Wyrestorm extender EX-35-H2-ARC XX (23)
ON-DEMAND AUDIO
With on-demand content forming the new way of watching TV, free the audio from within a SmartTV with the WyreStorm EX-35-H2-ARC HDBaseT™ extender, supporting both True ARC (via HDMI) or optical audio return. Wyrestorm extender EX-35-H2-ARC XX (16)
HIGH FRAME RATE HDR
HDR Content has recently enjoyed an up-shift in refresh rates after starting its life at 24Hz on UHD Blu-Ray discs. High frame-rate HDR is now available at 60Hz on certain discs and via games consoles like the Xbox One X; the EX-35-H2-ARC is ready for this, supporting both HDR-10, HLG and Dolby Vision (Dolby Vision at up to 30Hz)
AUDIO DE-EMBED

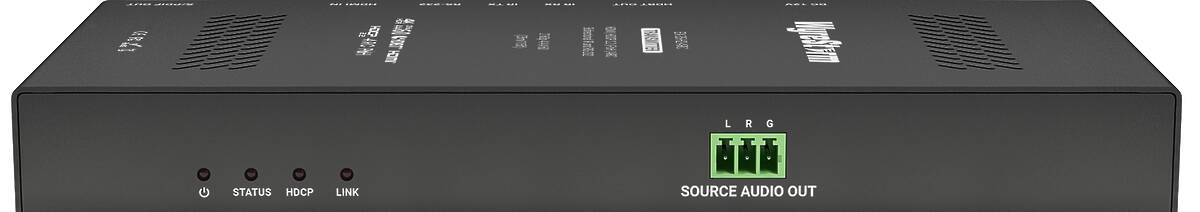

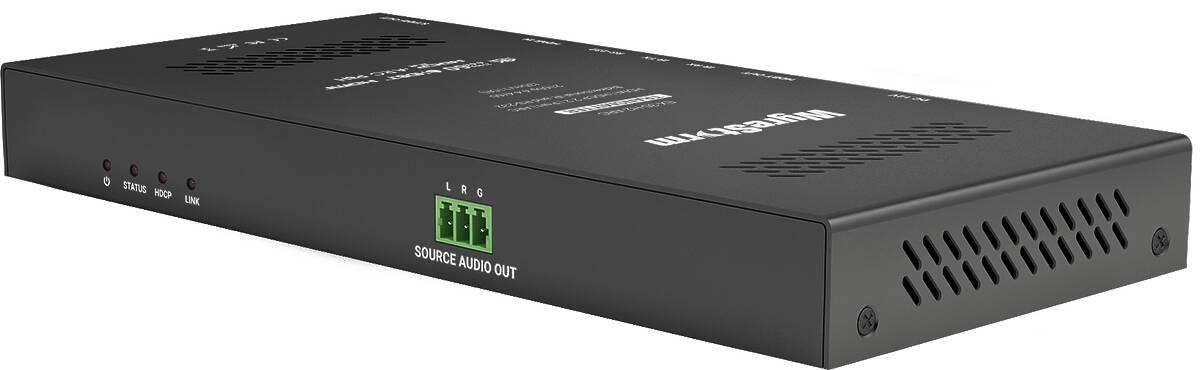

Fully-featured audio performance doesn’t stop at the ability to handle ARC, the transmitter of the EX-35-H2-ARC offers the ability to extract 2ch PCM audio from the source via the 3-pin phoenix port for connection to an audio system
WyreStorm EX-35-H2-ARC Key Features
- Dynamic visually lossless compression enables extension of up to 4K/60 4:4:4 or HDR 60Hz content over HDBaseT to 35m/115ft and 1080p to 70m/230ft
- True ARC functionality extracts and sends 5.1 audio from a Smart TV to a compatible AVR via HDMI
- HDCP 2.2 compliant, with automatic variable compression supporting full bandwidth HDMI content up to 17.8Gbps
- Compatible with the latest HDR standards, including HDR-10+, HLG content, with support for Dolby Vision™ up to 30Hz
- Class B HDBaseT extends 4K UHD 4:4:4 content to 35m/115ft with IR & RS-232 pass-through
- Toslink input & output allows non-ARC audio to be sent from RX-TX via selection switch
- Analogue stereo audio breakout of source audio on transmitter
- Advanced re-clocking chipset increases compatibility with new 4K UHD source devices
- 2-way PoH (Power over HDBaseT) enables either transmitter or receiver to be remotely powered by the other unit
- Slimline 21mm chassis for easier, more convenient installation behind displays
- 2ch PCM audio and multichannel HD audio supports 7.1, DTS-X and Dolby Atmos™
- Switchable RS-232 function mode on transmitter and receiver for firmware update Note: Serial control via RS-232 only supported when connected to a compatible HDBaseT transmission device with routable RS-232
- Threaded bushings allow use of both standard and locking 18v DC power plugs
- Visual LED indication for power supply to units, signal status to show established display connection, HDCP presence in signal and HDBaseT link between devices
- Automatically adjusts equalization and amplification of signal for easy installation
WyreStorm EX-35-H2-ARC Downloads
WyreStorm EX-35-H2-ARC Specifications
Connectivity |
|
| Transmitter | |
| Inputs | 1 × HDMI 19-pin type A |
| Outputs | 1 × HDBT Out: 8-pin RJ-45 Female |
| 1 × S/PDIF Out: TOSLINK (Digital Optical) | |
| 1 × Source Audio Out: 3-pin Phoenix | |
| Output Video Encoding | v1: HDBaseT Class B |
| Encoding Data Rate | v1: 9.2Gbps |
| End To End Latency Formats | 10μs (microseconds) |
| Audio Formats | 2ch Analogue/PCM | Multichannel: LPCM up to DTS-X and Dolby Atmos |
| Receiver | |
| Inputs | 1 × HDBaseT™ 8-pin RJ-45 Female |
| 1 × S/PDIF In: TOSLINK (Digital Optical) | |
| Outputs | 1 × HDMI 19-pin type A |
Resolution and Ma× Cable Length
| Video Resolutions | HDMI | Cat6a/7 |
|---|---|---|
| 1920×1080p @60Hz 12bit | 15m | 70m |
| 1920×1080p @60Hz 16bit | 7m | 70m |
| 3840×2160p @24Hz 10bit 4:2:0 HDR | 3m | 35m |
| 3840×2160p @30Hz 8bit 4:4:4 | 7m | 35m |
| 3840×2160p @60Hz 10bit 4:2:0 HDR | 3m | 35m |
| 4096×2160p @60Hz 8bit 4:2:0 | 7m | 35m |
| 4096×2160p @60Hz 8bit 4:4:4 | 7m | 35m |
Processing |
|
| Supported Standards | DCI | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100 |
| Maximum Pixel Clock | HDMI: 600MHz | HDBaseT: 297MHz |
Communication and Control |
|
| HDMI | HDMI 2.0 | HDCP 2.2 | EDID | CEC Pass-through | DVI/D supported with adapter (not included) |
| HDBaseT™ | HDMI 2.0 | HDCP 2.2 | EDID | 2-way PoH | Bidirectional IR and RS-232 |
| IR | 1x IR TX 3.5mm (1/8in) Mono | Bidirectional over HDBaseT™1x IR RX 3.5mm (1/8in) Stereo | Bidirectional over HDBaseT™ |
| RS-232 | 1x 3-pin Screw Down Phoenix Connector | Bidirectional over HDBaseT™ |
Mechanical |
|
| Power Supply | 18V DC 1A |
| Max Power Consumption | 8.88W |
| Poh | 48V 15.4W |
| Operating Temperature | 0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing |
| Storage Temperature | -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing |
| Maximum Btu | 30.30 BTU/hr |
Dimensions & Weight |
|
| Rack Units/wall Box | <1U |
| Height | 15mm/0.6in |
| Width | 109mm/4.3in |
| Depth | 64mm/2.52in |
| Weight | 0.17kg/0.37lbs |
| Regulatory Safety And Emission | CE | FCC | RoHS | RCM |
