Kramer TBUS-1-KWC
Table Mount Modular Multi-Connection Solution - with wireless charging tilt up lid, 191×152mm cutout
Unpopulated
£156 (£187.20 inc. VAT)
Availability: In stock
Availability: In stock
Kramer TBUS-1-KWC (91-011590)

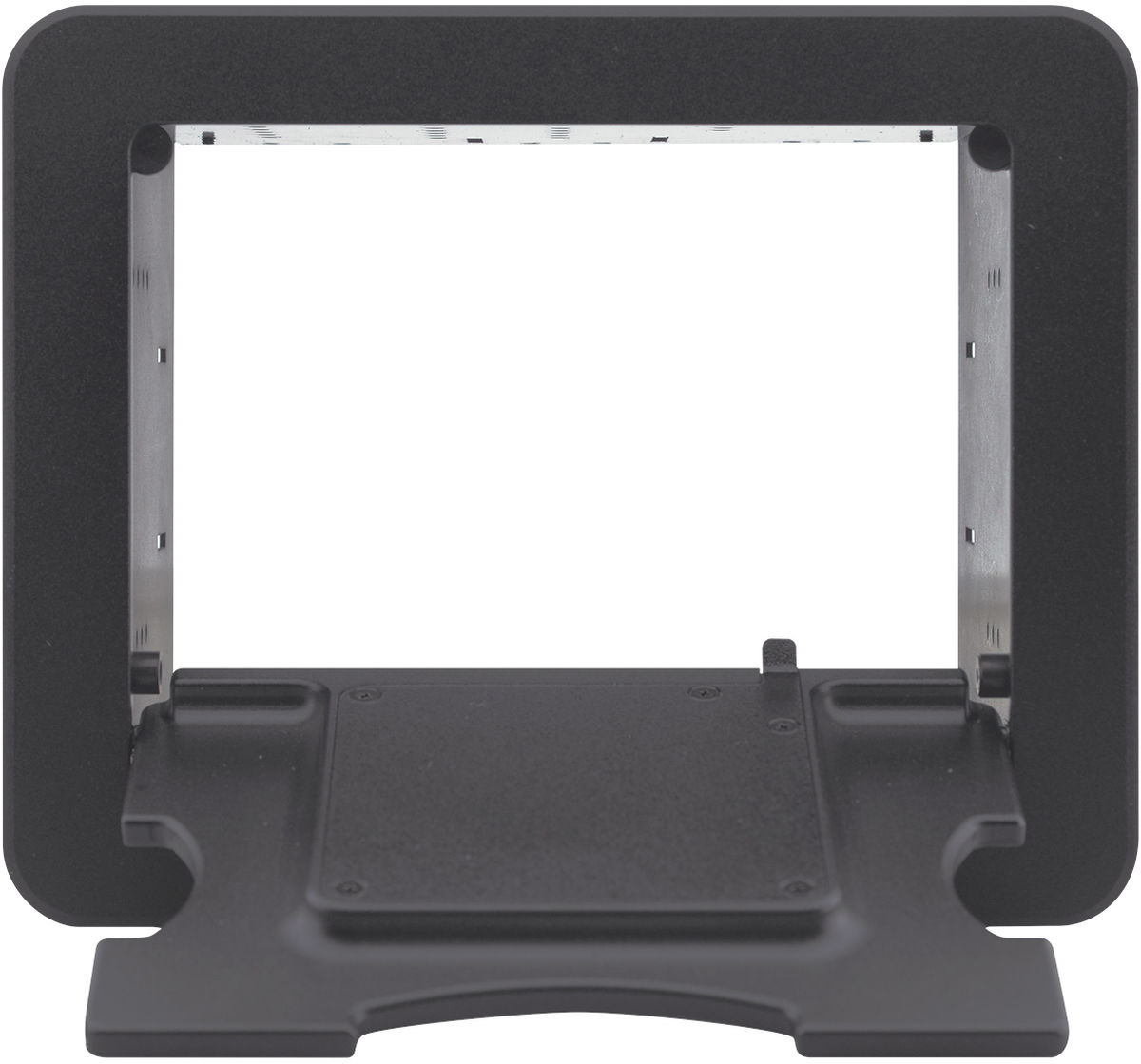

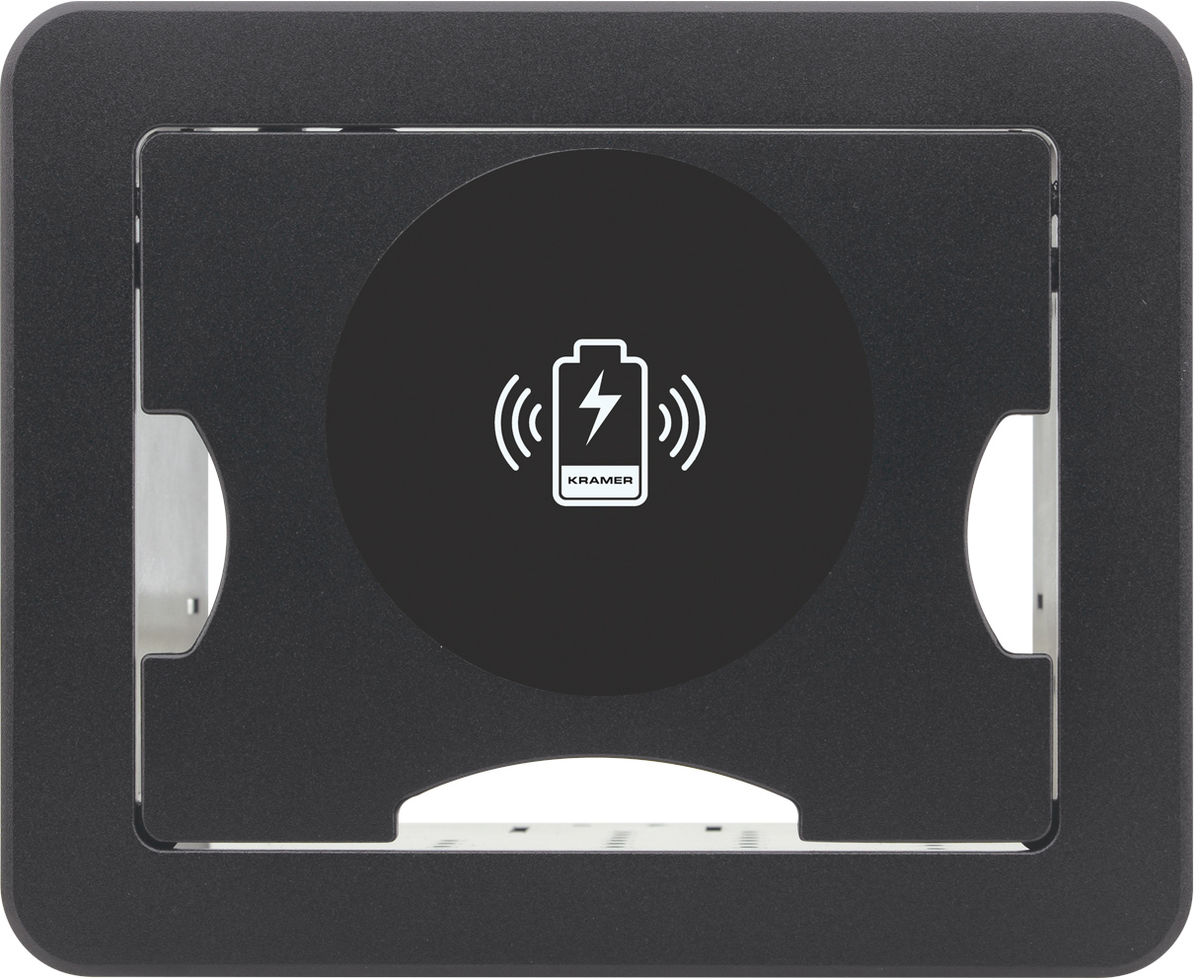

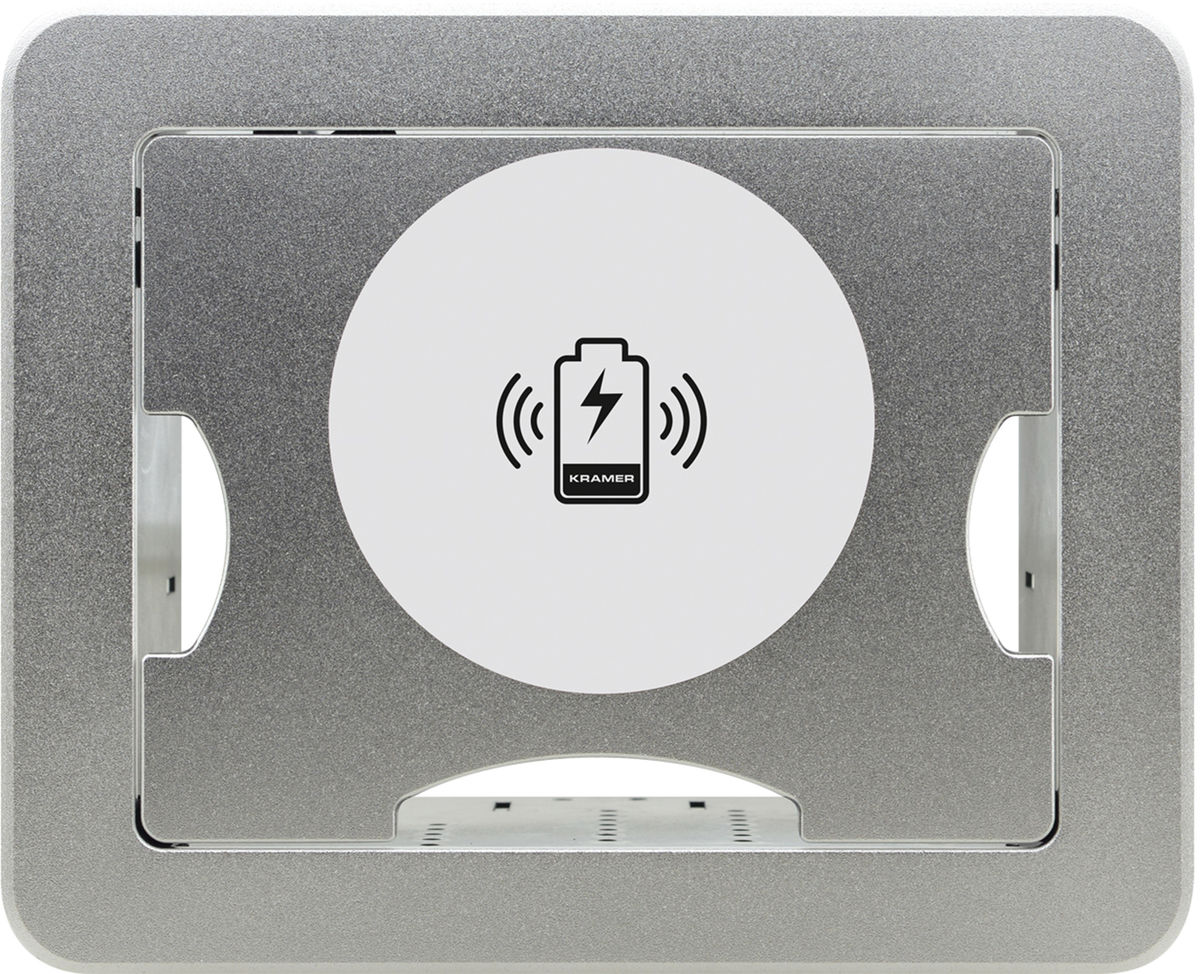

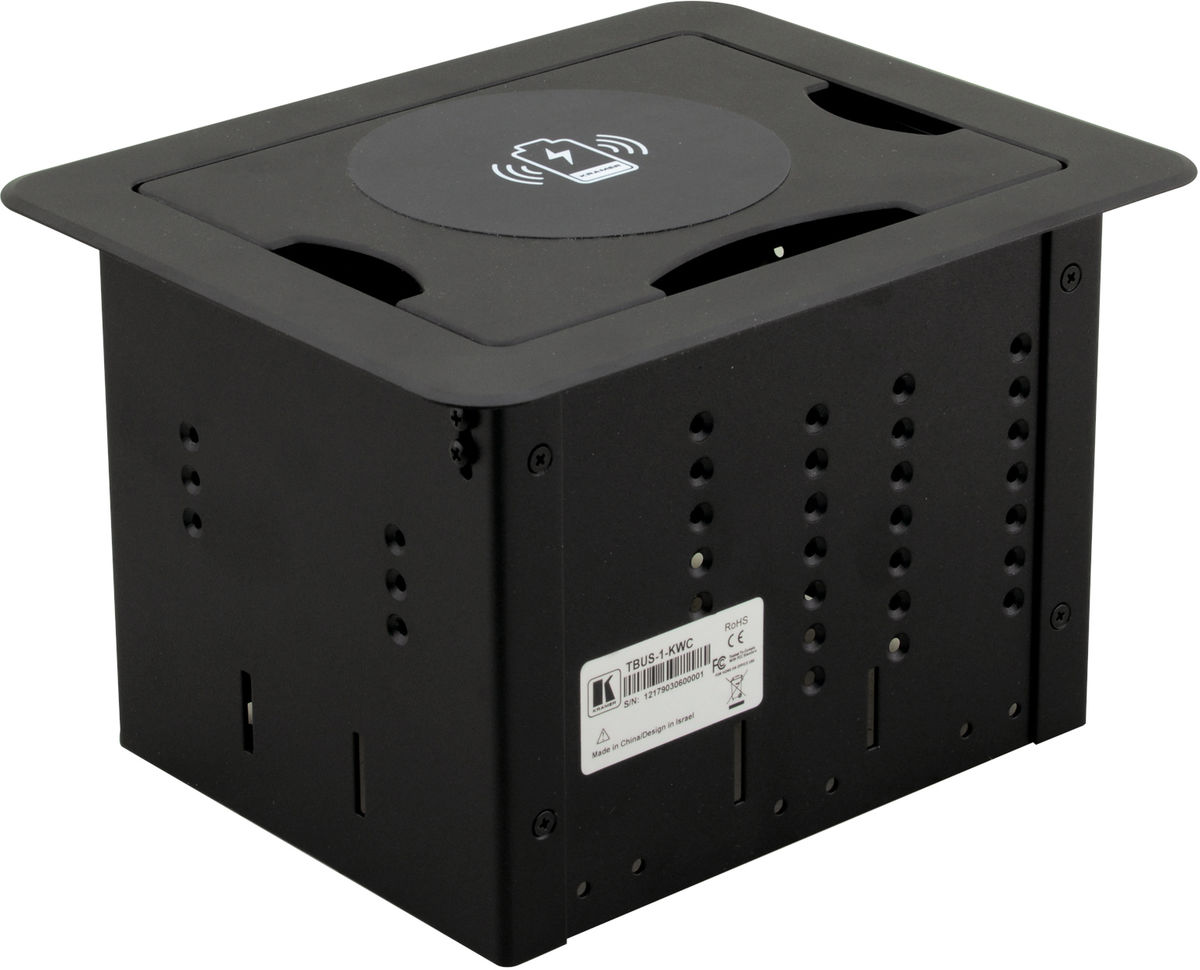

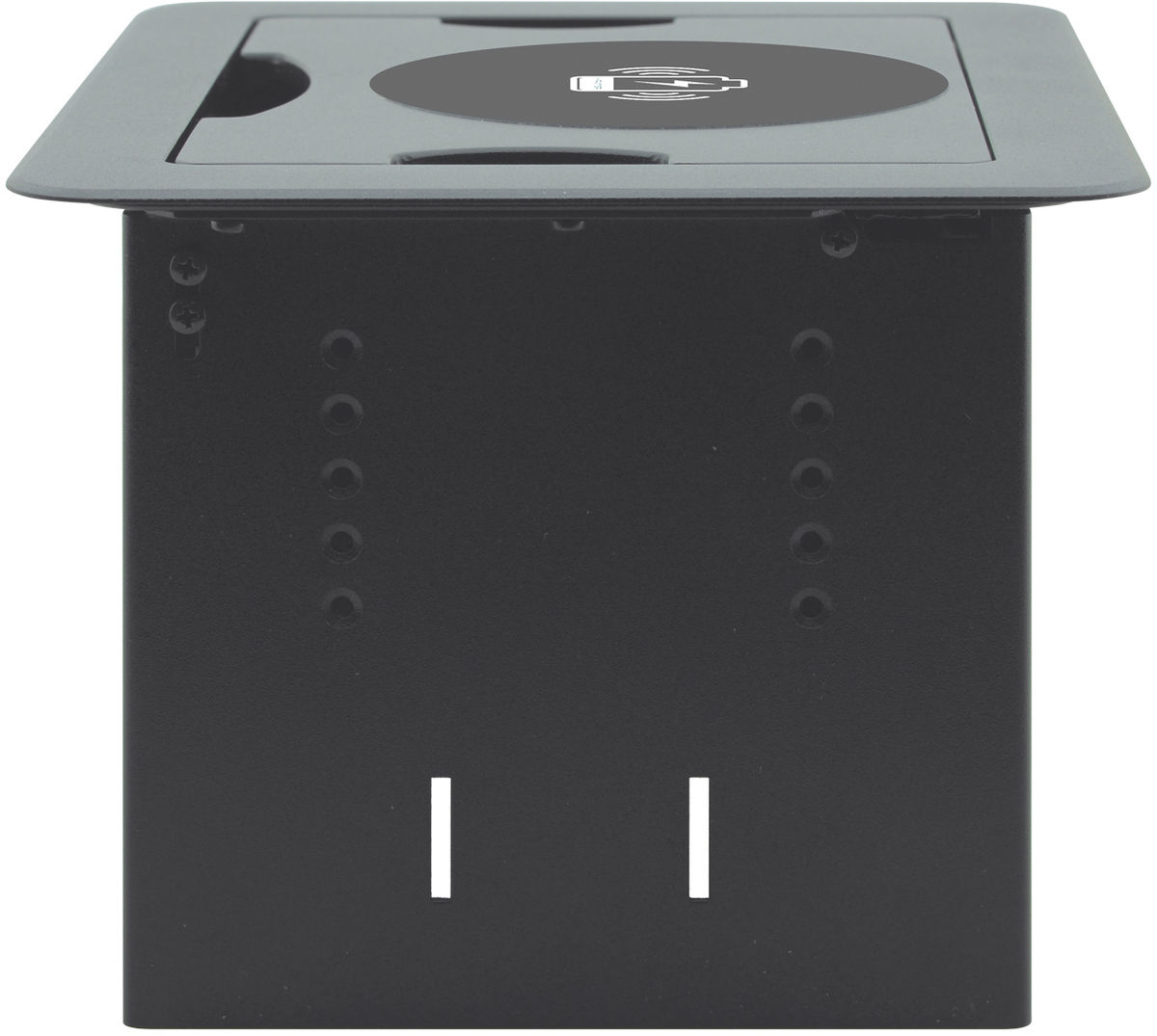

The Kramer TBUS-1-KWC is a modular enclosure using the same inner frames as the TBUS-1Axl and TBUS-1N with an integrated, surface mount, wireless charging spot flush-mounted on the TBUS bezel.
Kramer TBUS-1-KWC Key Features
- Integrated Wireless Charging Spot — For mobile phones integrated in the TBUS.
- Flush Surface
- Power Supply — Requires a supply voltage of 12V DC at 2.0A.
- Current Input — 1A, IEEE 802.15.4 based RF channels.
- Power Output — 6 to 15W.
- Regulatory Compliance — PMA type 3 compliantEMC Emission | EN5502/CISPR22Safety | EN60950-1, EN60950-1, UL60950-1, IEC 60950-1, RoHS, REACH
- Qi Standard Compliant
- Cutout Dimensions — 152+2mm x 191+2mm (6+0.08in x 7.5+0.08in).
- 7 year warranty (Click Here for details)
- Order Code: 91-011590
Kramer TBUS-1-KWC Downloads
Kramer TBUS-1-KWC Specifications
Mechanical |
|
| Power | International power sockets available from 110V to 240V AC |
| Fuse Rating | T 6.3A 250V |
| Power | Charging spot: 12V DC, 1.25A |
| Charging Efficiency | 73% |
| Charging Power Output | 900mA max |
| Safety Regulatory Compliance | CE compliant |
| Standard | Qi |
| Accessories | Included Six self-locking ties, metal template, power supply, power supply bracket |
| Sold Separately Power cord, inner frames, passive wall plates and interfaces, power socket kits | |
| Product Dimension | 27.36×17.00×13.10cm (10.77×6.69×5.16") W×D×H |
| Product Weight | 1.6kg (3.4lbs) approx. |
| Shipping Dimension | 20.80×18.50×30.00cm (8.19×7.28×11.81") W×D×H |
| Shipping Weight | 2.8kg (6.1lbs) approx. |
Environmental |
|
| Operating Temp. Range | 0° to +40°C (32° to 104°F) |
| Operating Humidity Range | 10 to 90% RHL, non-condensing |
| Storage Temp. Range | -40° to +70°C (-40° to 158°F) |
| Storage Humidity Range | 5 to 95% RHL, non-condensing |
Replacement Power Supplies
| Product | Description | Price | Inc. VAT |
| Kramer PS-1202 | 12V DC/2A Desktop Power Supply with power cord | £41 | £49.20 |
| Kramer PS-1202-O | 12V DC/2A Open Head Power Supply | £33 | £39.60 |
| Kramer PS-1205 | 12V DC/5A Desktop Power Supply with power cord | £62 | £74.40 |
| Kramer VA-102P12 | 10-Output 12v DC/10A Power Supply (Max 1 Amp per channel) | £424 | £508.80 |
Table/Surface Access mount modules
| Product | Description | Price | Inc. VAT |
| Kramer KWC-1 | Wireless Charging spot table insert | £119 | £142.80 |
| Kramer T-4INSERT | Bracket to Install 4 Inserts in a Dual Power Socket Opening | £11 | £13.20 |
| Kramer TS-1GB | Single UK Power socket for TBUS | £32 | £38.40 |
| Kramer TS-1U | Single Universal Power socket | £32 | £38.40 |
| Kramer TS-201GB | Single GB Power socket for TBUS-201xl & TBUS-202xl | £32 | £38.40 |
| Kramer TS-201U | Single Universal Power socket for TBUS-201xl | £16 | £19.20 |
| Kramer TS-21GB | Single GB Power socket | £33 | £39.60 |
| Kramer TS-2GB | Dual UK Power socket for TBUS | £41 | £49.20 |
| Kramer TS-2U | Dual Universal Power socket | £41 | £49.20 |
| Kramer TS-PEU | Universal Socket Power Extension for Modular TBUS | £159 | £190.80 |
| Kramer TS-UC | TBUS power socket module with 2 USB charging ports | £16 | £19.20 |
| Kramer W-2Blank | Double Blank Plate for TBUS and Wall Plates | £4 | £4.80 |
| Kramer W-2UC | Dual USB Charger for TBUS and Wall Plates (Total 4A output; Includes power supply) | £69 | £82.80 |
| Kramer W-45 | Wall Plate Insert - RJ-45 | £19 | £22.80 |
| Kramer W-Blank | Blank plate for TBUS and wall plates | £3 | £3.60 |
| Kramer W-DP | DisplayPort wall plate and architectural solution module | £19 | £22.80 |
| Kramer W-DVI | DVI-I Adaptor module | £15 | £18.00 |
| Kramer W-H | HDMI Adaptor | £19 | £22.80 |
| Kramer W4545 | Double RJ-45 Pass through | £24 | £28.80 |
| Kramer WA-1PN | Wall Plate Insert − 3.5mm Stereo Audio | £19 | £22.80 |
| Kramer WA-1XLF | XLR adaptor module | £16 | £19.20 |
| Kramer WA-45 | 3.5mm and RJ-45 Pass Through module insert | £16 | £19.20 |
| Kramer WCP | Cable pass through 10mm diameter | £13 | £15.60 |
| Kramer WCP-2 | Dual Cable Pass Through up to 12.5mm Diameter | £13 | £15.60 |
| Kramer WCP-21 | Dual Cable Pass Through up to 12.5mm and 9mm in Diameter | £13 | £15.60 |
| Kramer WU-2AA | 2 × USB 2.0 Type A pass through module for TBUS and Wall Plates | £29 | £34.80 |
| Kramer WU-AA | USB-A 2.0 female to USB-A 2.0 female adaptor module | £16 | £19.20 |
| Kramer WU-AB | USB-A female to USB-B cable female adapter | £16 | £19.20 |
| Kramer WU-BA | USB-B female to USB-A cable female adapter (Available in Black, grey or white) | £16 | £19.20 |
| Kramer WU-CA | USB-C 3.1 Wall Plate and TBus Insert | £34 | £40.80 |
| Kramer WU3-AA | 1 × USB 3.0 Type A pass through module for TBUS and Wall Plates | £29 | £34.80 |
| Kramer WX-2F | Female VGA to Female VGA Adaptor module | £21 | £25.20 |
