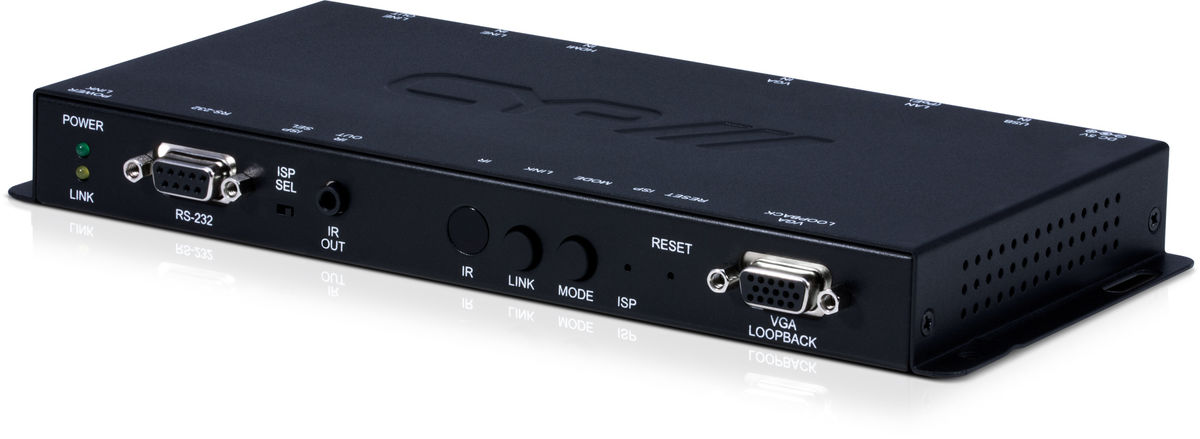

CYP IP-7000TX

2:1 4K HDMI/VGA with USB over IP transmitter

1 × HDMI, 1 × HD15, 1 × 3.5mm stereo mini-jack, 1 × USB Type B, 1 × RS-232 inputs; 1 × RJ45, 1 × HD15, 1 × 3.5mm stereo mini-jack, 1 × 3.5mm IR outputs

£377 (£452.40 inc. VAT)
Availability: In stock

CYP IP-7000TX

The IP-7000 series allows installers to configure a unique signal distribution system via a dedicated IT Network Infrastructure. You are in control when deciding how many inputs and end-points you require from the system; whether it be one transmitter to many receivers or many to many, your possibilities are endless. Simplicity is at the core of the IP-7000 as both the transmitter and receiver support PoE.

The video and audio can be transmitted via an IP network for distances up to 100m through a single network switch. The transmission distance can be further extended up to 100m between network switches and supports Gigabit networks.

This system also features bi-directional IR pass-through, analogue line level in/out, and microphone input provide the user with variety of audio options. The USB function allows the system to act like USB hub which, when combined with the VGA input/Output feature, it allows the system to be used as a KVM switch. Adding extra devices allows the user to cascade the system enabling them to extend the transmission distance without signal loss or introducing delay. Control is via On-screen Display (OSD), Telnet, IR Remote, WebGUI and RS-232 commands.


See also: CYP IP-7000RX.

CYP IP-7000TX Key Features

  • HDCP 2.2, HDMI and DVI Compatible with HDMI and VGA input
  • Supports video transmission over IP up to 100m
  • Supports resulutions up to 4K2K@30Hz (RGB 4:4:4) or 4K2K@60Hz (YUV 4:2:0)
  • Supports pass through of HD Audio formats (LPCM, Dolby® Digital and DTS®)
  • Independant Audio Transmission 3.5mm Jack
  • Features 2 x USB 1.1 and 2 x USB 2.0 ports
  • 3 x RJ45 LAN Ports
  • Mic Output 3.5mm Jack
  • Control via OSD, Telnet, Web Gui, IR Remote and RS-232
HDMI
4K 4096*2160 and 3840*2160 Resolution
RGBHV
RS-232 Pass Through
2K 2048*1080 Resolution
HDCP Compliant

CYP IP-7000TX Specifications

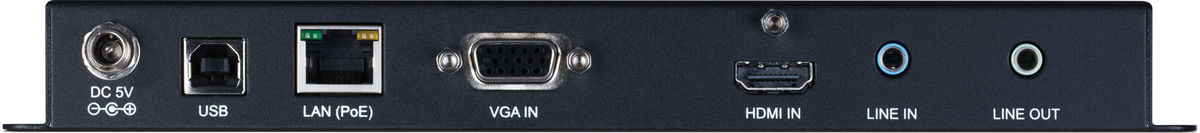

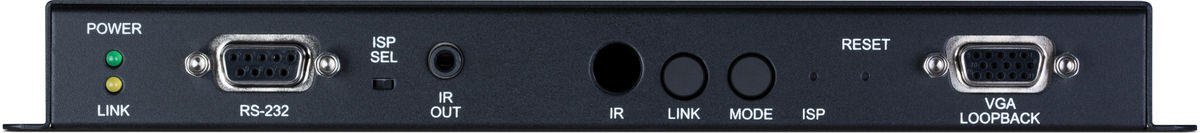

Connectivity

Inputs 1 × HDMI for HDMI Uncompressed AV and Data
1 × 15pin D-sub for VGA RGBHV
1 × 9pin D-sub for RS-232 Data
1 × USB Type A for USB Propriety Data
1 × 3.5mm Stereo mini-jack for Analogue Stereo(L/R)
Outputs 1 × RJ45 for PoE HDMI & Propriety Data
1 × 3.5mm Stereo mini-jack for Analogue Stereo(L/R)
1 × 3.5mm Stereo mini-jack for Infra Red Emitter
1 × 15pin D-sub for VGA Loop RGBHV

Mechanical

PoE PSU PoE
PSU 5V/2.6A
Dimensions 108mm W × 231mm D × 25mm H
Net Weight 660g
Gross Weight 1130g

CYP IP-7000TX Compatible Products

Product CodeDescriptionPriceInc. VAT
CYP IP-7000RX 2:1 4K HDMI/VGA with USB over IP receiver (1 × RJ45, 1 × HD15, 1×3.5mm stereo mini-jack, 1×3.5mm IR inputs;1 × HDMI, 1 × HD15, 2 × RJ45, 1×3.5mm stereo mini-jack, 4 × USB Type B, 1 × RS-232 outputs) £377 £452.40


CYP IP-7000TX Possible Alternatives

Product CodeDescriptionPriceInc. VAT
CYP IP-6000TX 2:1 HDMI/VGA with USB over IP transmitter 1 × HDMI, 1 × HD15, 1 × 3.5mm stereo mini-jack, 1 × USB Type B, 1 × RS-232 inputs; 1 × RJ45, 1 × HD15, 1 × 3.5mm stereo mini-jack, 1 × 3.5mm IR outputs £232 £278.40
